Initiate SCCM client agent actions using command line

We can initiate SCCM Client agent actions using command line by going to Configuration Manager Properties & clicking on Action Tab. However, we can do the same using command line and PowerShell commands. These commands can be executed on Local as well remote systems.

Every action stated under actions tab has a specific Trigger Schedule ID. The list of these ID’s are as follows:

Client Agent Trigger Schedule ID

Client Agent Trigger Schedule ID	Client Action Name
{00000000-0000-0000-0000-000000000021}	Machine policy retrieval & Evaluation Cycle
{00000000-0000-0000-0000-000000000022}	Machine policy evaluation cycle
{00000000-0000-0000-0000-000000000003}	Discovery Data Collection Cycle
{00000000-0000-0000-0000-000000000002}	Software inventory cycle
{00000000-0000-0000-0000-000000000001}	Hardware inventory cycle
{00000000-0000-0000-0000-000000000113}	Software updates scan cycle
{00000000-0000-0000-0000-000000000114}	Software updates deployment evaluation cycle
{00000000-0000-0000-0000-000000000031}	Software metering usage report cycle
{00000000-0000-0000-0000-000000000121}	Application deployment evaluation cycle
{00000000-0000-0000-0000-000000000026}	User policy retrieval
{00000000-0000-0000-0000-000000000027}	User policy evaluation cycle
{00000000-0000-0000-0000-000000000032}	Windows installer source list update cycle
{00000000-0000-0000-0000-000000000010}	File collection

Initiate Command line on local system

First you need to open command prompt with elevated privileges. Run the following commands:

Trigger Schedule ID – Command Line

Client Action Name (For Local System)	Client Agent Trigger Schedule ID	SCCM / MECM log files to verify
Machine policy retrieval & Evaluation Cycle	WMIC /namespace:\\root\ccm path sms_client CALL TriggerSchedule „{00000000-0000-0000-0000-000000000021}“ /NOINTERACTIVE	PolicyAgent.log
Machine policy evaluation cycle	WMIC /namespace:\\root\ccm path sms_client CALL TriggerSchedule „{00000000-0000-0000-0000-000000000022}“ /NOINTERACTIVE
Discovery Data Collection Cycle	WMIC /namespace:\\root\ccm path sms_client CALL TriggerSchedule „{00000000-0000-0000-0000-000000000003}“ /NOINTERACTIVE	InventoryAgent.log
Software inventory cycle	WMIC /namespace:\\root\ccm path sms_client CALL TriggerSchedule „{00000000-0000-0000-0000-000000000002}“ /NOINTERACTIVE	Inventoryagent.log
Hardware inventory cycle	WMIC /namespace:\\root\ccm path sms_client CALL TriggerSchedule „{00000000-0000-0000-0000-000000000001}“ /NOINTERACTIVE	Inventoryagent.log
Software updates scan cycle	WMIC /namespace:\\root\ccm path sms_client CALL TriggerSchedule „{00000000-0000-0000-0000-000000000113}“ /NOINTERACTIVE	ScanAgent.log
Software updates deployment evaluation cycle	WMIC /namespace:\\root\ccm path sms_client CALL TriggerSchedule „{00000000-0000-0000-0000-000000000114}“ /NOINTERACTIVE	ScanAgent.log,UpdateDeployment.log
Software metering usage report cycle	WMIC /namespace:\\root\ccm path sms_client CALL TriggerSchedule „{00000000-0000-0000-0000-000000000031}“ /NOINTERACTIVE	Mtrmgr.log
Application deployment evaluation cycle	WMIC /namespace:\\root\ccm path sms_client CALL TriggerSchedule „{00000000-0000-0000-0000-000000000121}“ /NOINTERACTIVE	Appdiscovery.log, AppIntentEval
User policy retrieval	WMIC /namespace:\\root\ccm path sms_client CALL TriggerSchedule „{00000000-0000-0000-0000-000000000026}“ /NOINTERACTIVE
User policy evaluation cycle	WMIC /namespace:\\root\ccm path sms_client CALL TriggerSchedule „{00000000-0000-0000-0000-000000000027}“ /NOINTERACTIVE
Windows installer source list update cycle	WMIC /namespace:\\root\ccm path sms_client CALL TriggerSchedule „{00000000-0000-0000-0000-000000000032}“ /NOINTERACTIVE
File collection	WMIC /namespace:\\root\ccm path sms_client CALL TriggerSchedule „{00000000-0000-0000-0000-000000000010}“ /NOINTERACTIVE

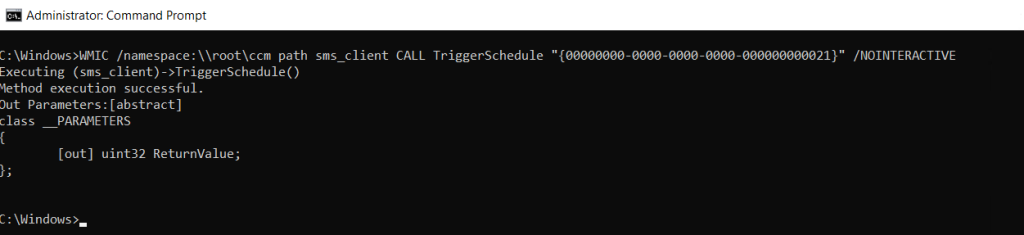

Log files can be verified to see the action initiated. You can find the logs under c:\windows\ccm\logs directory. Following is the screenshot for the reference:

Initiate Command line on Remote system

There will be a slight variation with the command by using the /node parameter with WMIC. Following is one example:

WMIC /node:"HOSTNAME" /namespace:\\root\ccm path sms_client CALL TriggerSchedule "{00000000-0000-0000-0000-000000000021}" /NOINTERACTIVE

Where hostname is a remote system name where you wanted to execute the command.

Initiate PowerShell Command on Local system

Invoke-WmiMethod -Namespace root\ccm -Class sms_client -Name TriggerSchedule "{00000000-0000-0000-0000-000000000021}"

Initiate PowerShell Command on Remote system

With Invoke-WmiMethod we have to use additional parameter ie. -ComputerName

Invoke-WmiMethod -ComputerName “hostname” -Namespace root\ccm -Class sms_client -Name TriggerSchedule "{00000000-0000-0000-0000-000000000021}"

PowerShell Script to initiate Client Actions on multiple Systems

We can use PowerShell Script to automate this process for multiple systems.

Conclusion

Initiating the SCCM client actions can be done via command line or PowerShell command. These client actions can be initiated for local and remote device as well. The process is simple and can be executed very easily.
